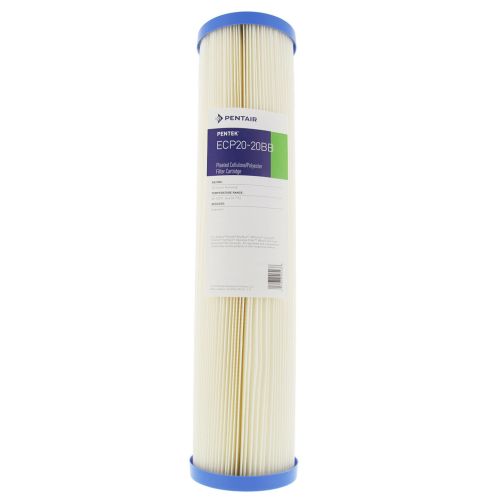

20 micron 20 Inch Pleated Big Blue Polyester Cartridges

An economic, versatile and high flow capability pre-filter.

The large surface area creates a filter with superior dirt-holding capacity, these cartridges are formed around a polypropylene core with the polyester media secured by bonded vinyl end caps to ensure filter integrity.

Applications

• General particulate removal for incoming water filtration
• Pre or final stage filtration
• High flow applications

Technical Data

• 20 Micron rating
• Outer Diameter 4.5 Inch (114mm)
• Inner Diameter 1.1 Inch (28mm)
• Surface Area (m²) 2.42
• Maximum Operating Temperature (ºC) 38 at 1 bar
• Maximum Operating Pressure Differential (bar) 2 Avg.
• Efficiency (%) 80
