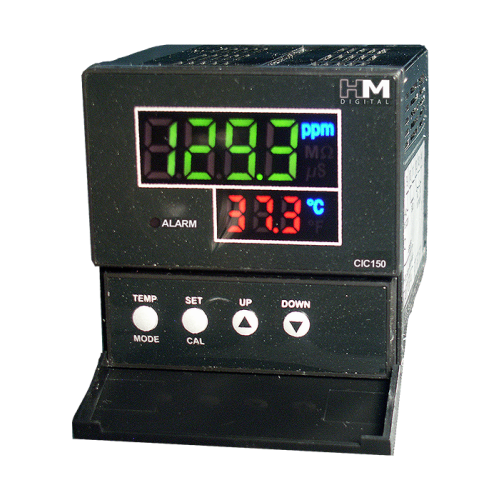

CIC150-N/ CIC-150-4 Single Control Dosing/Injection TDS/EC

The CIC controllers can monitor and control dosing and/or injection systems. This unit will control one system at a time.

Features

• Extended range for TDS and EC
• Two set points
• Two alarms (upper and lower)
• On-screen temperature display
• NaCl or 442 Conversion Factor
• Upper limit and lower limit set points to control a pump or solenoid valve
• Stainless steel electrode

Specification

• Range: 0-5000 ppm (mg/L) NaCl; 0-8500 ppm (mg/L) 442; 0-9999 µS
• 0-999: 0.1 ppm/µS; 1000-8500: 1 ppm/µS
• Accuracy: +/- 2% full scale
• ATC: Yes (1 – 65C)
• Calibration: Digital to any point
• Set Point: On-screen buttons
• Relay Control: Two (upper and lower limit)
• Alarm: Two dependent alarms (max. and min.)
• Bright, tri-color 5/8” L.E.D. display
• Display: 1/2” threaded NPTF, 3 m (9.8 ft.) cable
• Power Source: AC 110V / 220V
• Dimensions: 7.2 x 7.2 x 10.2 cm (2.8 x 2.8 x 4.0 in.)
• Weight: 436g (15.4 oz.)
