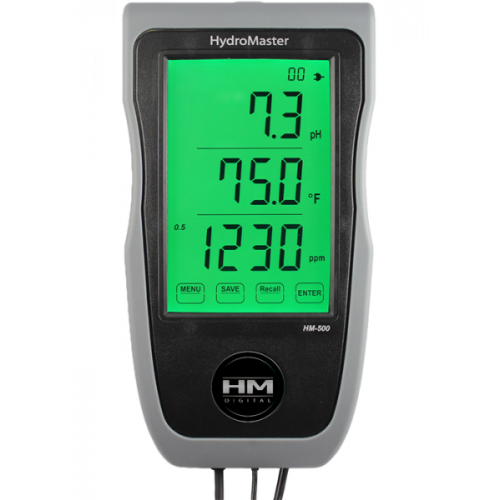

HM-500 Continuous pH/EC/TDS/Temp Monitor
The HM-500 is the most versatile continuous monitor indicating EC/TDS, pH, and Temp providing accurate, stable readings the user can rely on. With its rechargeable battery this unit is portable or can be wall mounted.
To make is even more user friendly, it comes equipped with touch screen, high and low alarm set points, and recorded readings.
It is ideal for hydroponics and other applications such as lab, pools, aquariums etc.
The unit can be wall mounted, is portable thanks to its rechargeable battery, and can be used as a benchtop monitor with its stand.
• Continuous pH/EC/TDS/Temp Monitor
• Rechargeable battery
• RF Resistant
• Portable/Wall Mount/Benchtop
• Data Storage: Up to 20 measurement readings
• Auto Shut-Off: After 5 minutes
• Alarm: Adjustable High & Low Set Point and on/off
• Display: LCD Touch-Type Screen with Auto Back lighting
• Probe: ABS with Platinum electrodes for EC / Single Junction pH Sensor
The HM Digital HydroMaster (HM-500) monitors pH, Temp, EC & TDS providing accurate, stable readings the user can rely on.
The unit can be wall mounted, is portable thanks to its rechargeable battery, and can be used as a benchtop monitor with its stand.
• Continuous pH/EC/TDS/Temp Monitor
• Rechargeable battery
• RF Resistant
• Portable/Wall Mount/Benchtop
• Data Storage: Up to 20 measurement readings
• Auto Shut-Off: After 5 minutes
• Alarm: Adjustable High & Low Set Point and on/off
• Display: LCD Touch-Type Screen with Auto Back lighting
• Probe: ABS with Platinum electrodes for EC / Single Junction pH Sensor
Includes:
1 pH probe (SP-P5)
1 TDS/EC probe (SP-C5)
1 packet of pH Storage Solution (PH-PSTOR)
1 packet of 1000 ppm Buffer Solution (CP-1000)
1 packet of pH 7 Buffer Solution (PH-P7)
1 packet of pH 4 Buffer Solution (PH-P4)
2 Flotation Discs
Measurement Range:
pH: 0.00 - 14.00 pH
Temperature: 0.0 - 80.0 °C / 32.0 - 176 °F
TDS: 0 - 9999 ppm / 0 - 10.00 ppt
EC: 0 - 9999 µS / 0 - 20.00
ATC
Range: 25°C (77°F)
Accuracy
pH: ± 0.02 pH
Temp: ± 0.5v
TDS: ± 0.2%
EC: ± 0.2 %
Measurement Scales
pH: pH
Temp: °C, °F
TDS: ppm (0.5 / ppm (0.7) / ppt (0.5) / ppt (0.7)
EC: µS / mS
Resolution
pH: 0.1 pH
Temp: 0.1°C / 0.1 °F
TDS: ppm: 0.1 ppm (0 - 99.9 ppm) / 1 ppm (100 - 9999 ppm) / ppt: 0.01 ppt (0 - 10.00 ppt)
EC: µS: 0.1 µS (0 - 99.9 µS) / 1 µS (100 - 9999 µS) / mS: 0.01 mS (0 - 20.00 mS)
Power Source: AC 110 V - 220V / Rechargeable Lithium Ion Battery
Function Environment: 0 - 50°C (0-122°C) / RH 80 % (EC Probe: 0 - 80°C)
Sensor Cable: 24-Inch shielded Coaxial Cable
Dimensions: About 8 x 4 x 1.5 Inches
Weight: 15.2 ounces for body / 5 ounces for two probes (without case)
| GTIN | 891144000311 |
|---|---|
| Manufacturer | HM Digital |
| Weight | 0.600000 |
| SKU | HM-500 |
