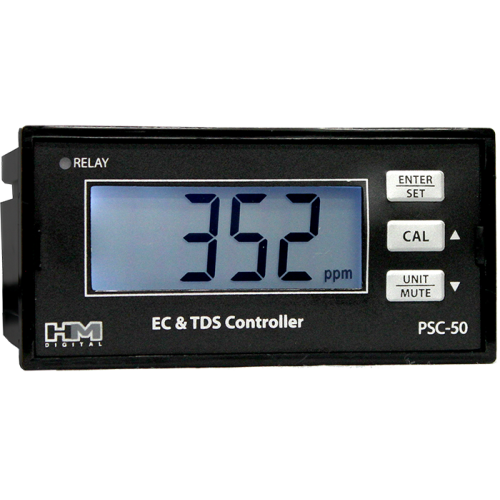

PSC-50 Single Line EC/TDS Mini Controller Previous HM Digital PSC-50: Single Line

PSC-54 Single Line, EC/TDS Mini Controller with 4-20mA Output

£108.00
In stock
SKU
PSC-54

The PSC-54 is a NEW product from HM Digital offering extended range EC/TDS testing for the commercial or industrial water treatment professional.

This “mini” controller has an adjustable relay able to control a pump or valve with a 4-20mA output.

The PSC-54 is a NEW product from HM Digital offering extended range EC/TDS testing for the commercial or industrial water treatment professional. This “mini” controller has an adjustable relay able to control a pump or valve with a 4-20mA output.



Features

  • Extended range for TDS and EC
  • 4-20mA output signal
  • Temperature display mode
  • Digital calibration
  • The fully adjustable relay control is set by the user to automatically stop a pump or valve if the level rises above the setting
  • Stainless steel electrode



Specification

  • Range: 0-9999 ppm (mg/L); 0-10.0 ppt (g/L) EC: 0-9999 µS; 0-20.00 mS
  • Accuracy: +/- 2%
  • Resolution: 0-99.9: 0.1 ppm/µS; 100-9999: 1 ppm/µS; 0.1ppt/mS
  • ATC: Yes (1 – 65C)
  • Calibration: Digital to any point
  • Set Point: On-screen buttons
  • Relay Control: Simple switch, user-defined set point
  • Alarm: Optional setting
  • Display: 2.3” LCD Display w/ backlight
  • Probes: 1/2” NPTF, 3 m (9.8 ft.) cable
  • Power Source: AC 110V / 220V
  • Dimensions: 9.6 x 4.8 x 10 cm (3.8 x 1.9 x 3.9 in)
  • Weight: 261g (9.02 oz.)


More Information
Manufacturer HM Digital
SKU PSC-54
