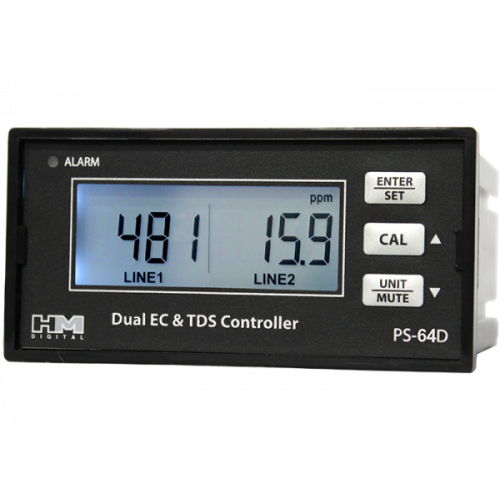

PSC-64D Dual Display, Dual Line EC/TDS Monitor w/ 4-20mA Output

The PSC-64D is a NEW product from HM Digital offering dual display monitoring for the industrial water treatment professional. This extended range EC/TDS “mini” monitor continuously monitors 2 lines while sending out a 4-20mA output.

Features

• Continuously monitors two lines simultaneously
• Dual line TDS/EC displays feed and product water
• Extended range for TDS and EC
• 4-20 mA output signal
• Digital calibration
• Stainless steel electrodes (2 sensors)

Specifications

• Range: 0-9999 ppm (mg/L); 0-10.0 ppt (g/L) EC: 0-9999 µS; 0-20.00 mS
• Accuracy: +/- 2%
• Resolution: 0-99.99: 0.1 ppm/µS; 100-9999: 1 ppm/µS; 0.1 ppt/mS
• ATC: Yes (1 – 65C)
• Calibration: Digital to any point
• Set Point: On-screen buttons
• Alarm: Optional setting
• Display: 2.3” LCD Display w/ backlight
• Probes: 1/2” NPTF, 3 m (9.8 ft.) cable
• Power Source: AC 110V / 220V
• Dimensions: 9.6 x 4.8 x 10 cm (3.8 x 1.9 x 3.9 in)
• Weight: 261g (9.02 oz.)
